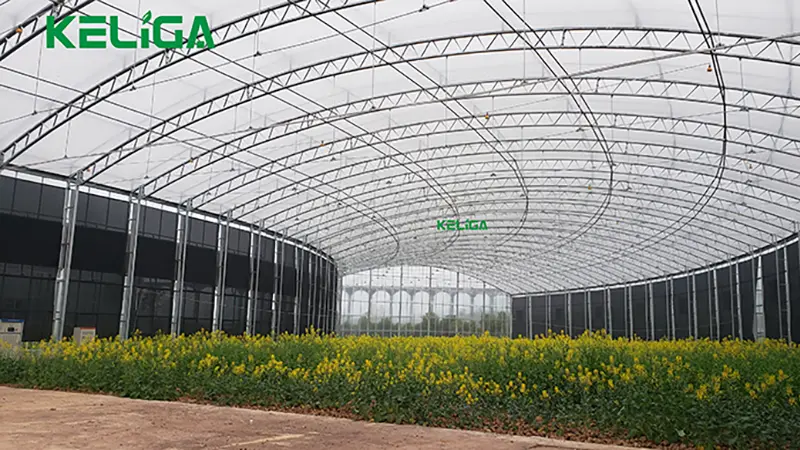

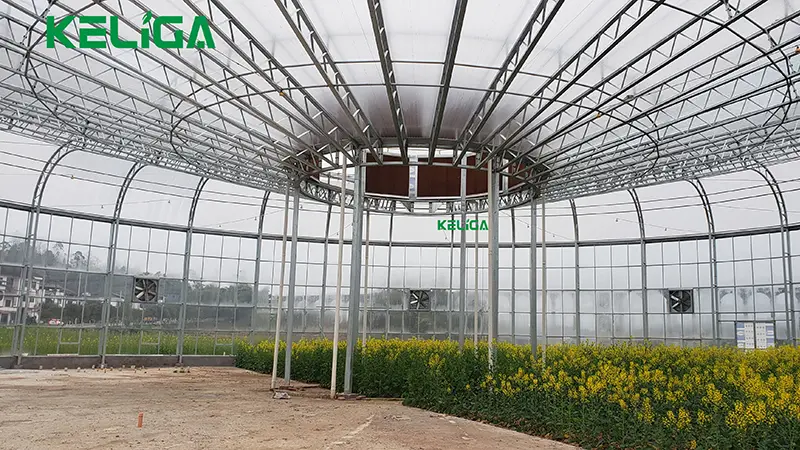

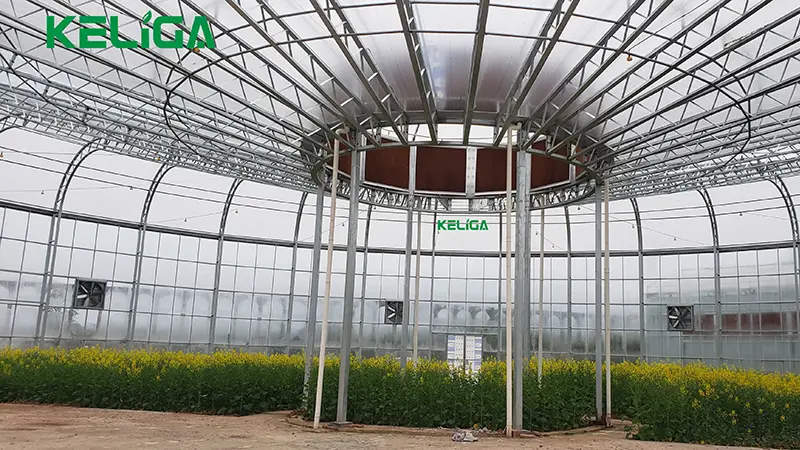

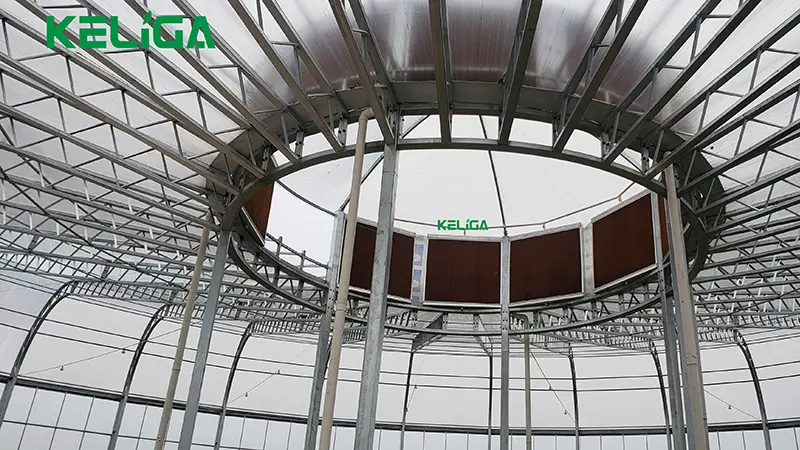

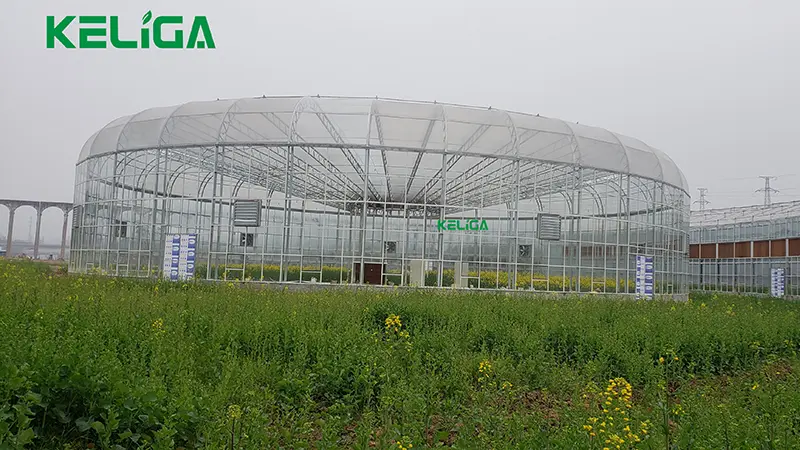

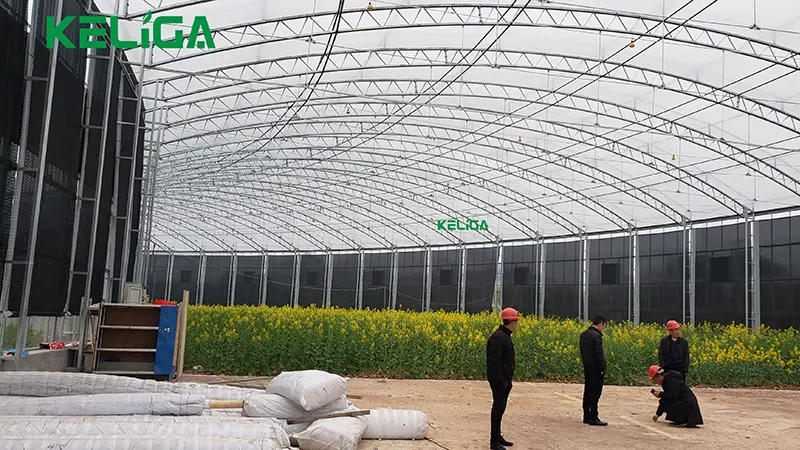

Round shape customized greenhouse
🌿 Round Customized Greenhouse
Liangping, Chongqing – High‑Humidity Climate Optimized
Designed for the subtropical, hot‑and‑humid conditions of Liangping, this round‑shaped greenhouse maximizes structural strength, light distribution, and air movement. Integrated with a dual‑zone ventilation system (roof + sidewalls) and a complete shading & evaporative cooling system, it ensures stable year‑round cultivation – even during Chongqing’s sweltering summers.
Customized greenhouse is a greenhouse product tailor-made for customers.It generally uses high-quality materials such as aluminum alloy structures and glass or polycarbonate panel, and is personalized according to factors such as the customer’s planting needs, site conditions, and budget.
☀️ Shading & Evaporative Cooling System
1. External Shading System (Top layer)
| Parameter | Specification |
|---|---|
| Shading rate | 70% – 85% (selectable) |
| Material | HDPE knitted shade cloth, UV‑stabilised (lifetime >5 years) |
| Drive mechanism | Electric gear motor + steel cable / rack‑pinion |
| Motor power | 0.55 kW (380V / 50Hz) |
| Opening / closing speed | 0.12 m/s |
| Control | Automatic (lux / temperature sensor) or manual |
| Energy saving | Reduces inside temperature by 6–10°C compared to outside |
2. Internal Cooling System (Fan + Pad)
| Parameter | Fan (Exhaust) | Cooling Pad |
|---|---|---|
| Type | High‑efficiency axial fan, galvanised housing | Corrugated cellulose pad (7090 type) |
| Airflow | 35,000 – 45,000 m³/h per unit (380 mm thick pad) | Evaporation efficiency: 75–85% |
| Power | 1.1 kW per fan | Passive (water pump: 0.37 kW) |
| Pad thickness | – | 150 mm |
| Pad area | – | Calculated per greenhouse size (e.g., 1.0 m² pad / 100 m² floor) |
| Water tank | – | 500 L galvanised tank + float valve |
| Control | Thermostat + humidistat (fully automatic) | Same controller + timer for pre‑wetting |
📌 Combined effect – With external shade + fan‑and‑pad active, indoor temperature can be kept 8–12°C below ambient even at 38°C outside (typical Liangping summer).

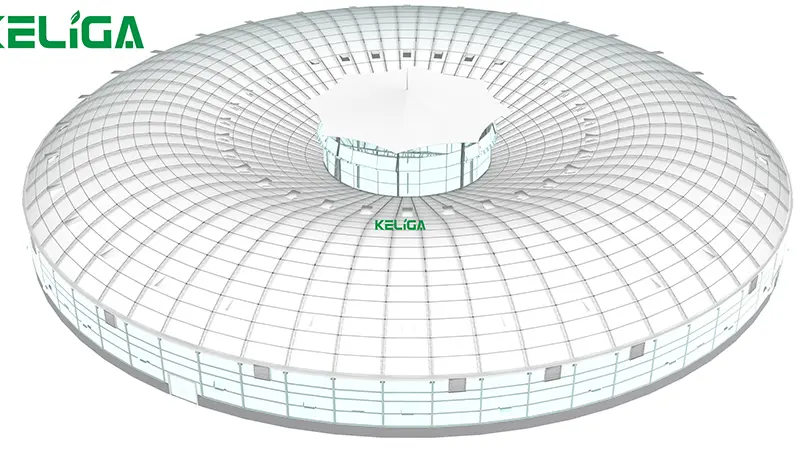

⚙️ Round Greenhouse – Structural Parameters
Parameter Value Diameter Custom (e.g., 12 m / 16 m / 20 m) Eave height 2.5 – 3.5 m Ridge height 4.5 – 6.0 m (depending on diameter) Frame type Hot‑dip galvanised steel pipe (Q235B, zinc coating ≥ 275 g/m²) Cover 4 mm / 6 mm polycarbonate sheet (clear or diffused) Gutter system Integrated aluminium gutter, sealed against leakage Wind load resistance 0.45 kN/m² (Grade 10 wind) Snow load capacity 0.25 kN/m² (suitable for Chongqing light snow) Curtain system Includes internal thermal screen (optional)
🧠 Smart Controller (Optional Upgrade)
| Function | Description |
|---|---|
| Sensors | Temp. / humidity / light intensity / rain / wind speed |
| Automation | Opens roof/side vents, activates fans, rolls shade net, triggers cooling pump |
| Alerts | SMS / app notification for extreme weather (e.g., >40°C or >8 m/s wind) |
| Power backup | 24V battery support for vent actuators during blackout |
📦 Typical Package for Liangping, Chongqing
| Component | Quantity (for a 16 m diameter greenhouse, ~200 m²) |
|---|---|
| Round steel structure | 1 set, hot‑dip galvanised |
| Polycarbonate cover (4 mm) | Full coverage |
| Roof vent (rack‑pinion) | 4 units, 600 mm stroke |
| Sidewall louvre vents | 8 units (full perimeter) |
| External shade net (75%) | 1 set with motor |
| Fan‑and‑pad cooling | 2 fans + 1 pad panel |
| Control panel | 1 automatic, with temp/humidity sensors |
| Rain sensor for vents | 1 unit |
| Anti‑insect screen | Full sidewall coverage |
- It can be customized according to planting needs and environmental conditions, including adjusting parameters such as temperature, humidity, and lighting.
- Reasonable design, robust structure, able to withstand adverse weather conditions, to ensure that the crop growing environment is stable.
- Environmental protection and energy saving, using efficient and energy-saving equipment and technology to reduce resource consumption and production costs.
- Provide a suitable planting environment, protect crops from pests and diseases, and increase yield and quality.
4000sqm Customized Greenhouse Strawberry Cultivation Project in China
This 4,000 sqm customized greenhouse for strawberry cultivation in China measures 100m long and 40m wide. With intelligent temperature, humidity and light control, it creates ideal growing conditions. The enclosed structure reduces pests and diseases, improves fruit quality and yield, and enables stable annual production with high efficiency and economic benefits.
3000sqm Blueberry Cultivation and Flower Exhibition Customized Greenhouse, Yunnan
This 3,000 sqm customized greenhouse in Yunnan covers 75m in length and 40m in width, designed for blueberry planting and flower exhibitions. It features stable light and temperature control, adapting well to the local climate. The structure ensures high-quality blueberry production and ideal display conditions, with low energy use and year-round stable operation.
5000sqm Customized Vegetable Greenhouse in the Netherlands
This 5,000 sqm customized vegetable greenhouse in the Netherlands measures 100 meters long and 50 meters wide. It boasts excellent thermal insulation performance, effectively reducing heat loss. Equipped with an intelligent climate system, it maintains stable temperature and humidity, enabling high-efficiency, year-round vegetable cultivation with low energy consumption.
R&D Focus Areas
We focus on several core R&D areas, dedicated to solving key direction challenges in the energy storage sector.
Greenhouse ventilation system
Greenhouse ventilation system: Maintain air circulation, regulate temperature and humidity, and promote crop growth
Automatic irrigation system
Automatic irrigation system: Automatically adjust according to the water demand of crops, ensuring the water demand for crop growth.
Light supplement system
Cooling and dehumidification system
Cooling and dehumidification system: Automatically adjust the temperature inside the greenhouse according to the ambient temperature to maintain a stable growth environment.
Growth environment monitoring system
Growth environment monitoring system: Real time monitoring of temperature, humidity, lighting and other parameters, providing data support to make adjustments.
CO2 concentration regulation systeM
CO2 concentration regulation system: regulates the CO2 concentration in the greenhouse, promotes plant photosynthesis, and improves light utilization efficiency.
