C shape customized greenhouse
Provide a suitable planting environment, protect crops from pests and diseases, and increase yield and quality.

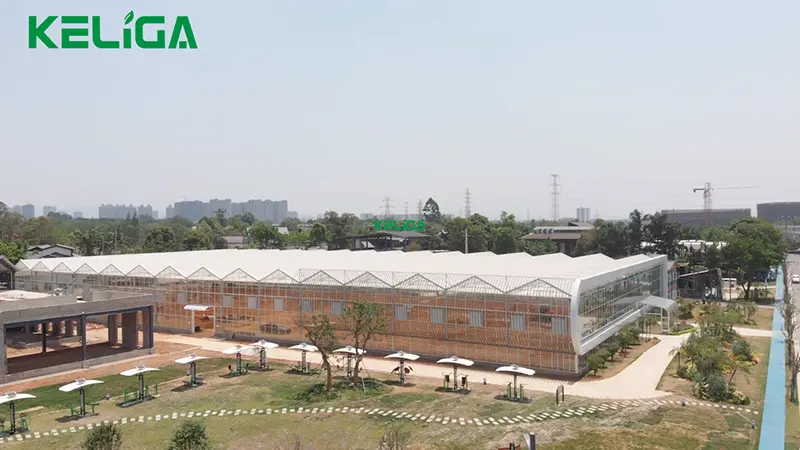

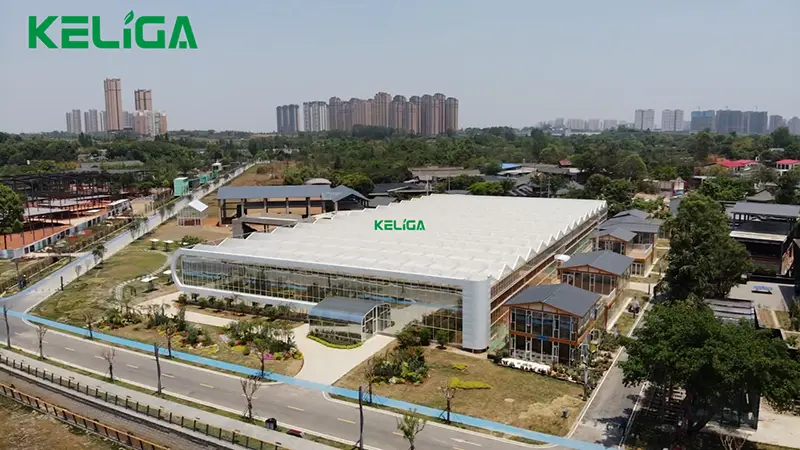

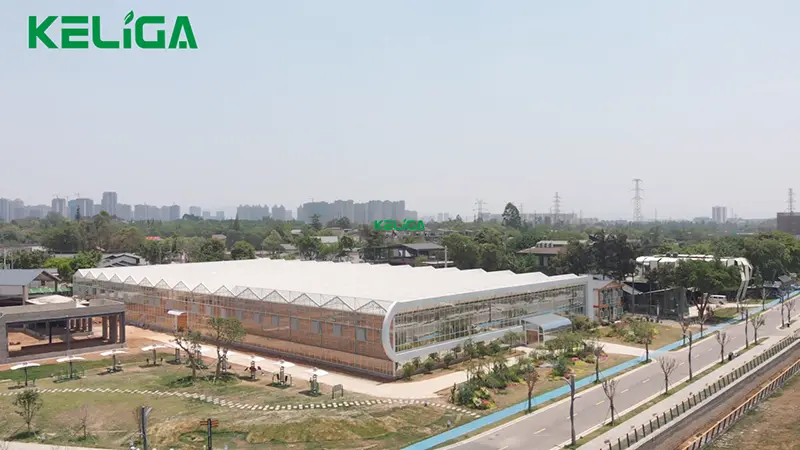

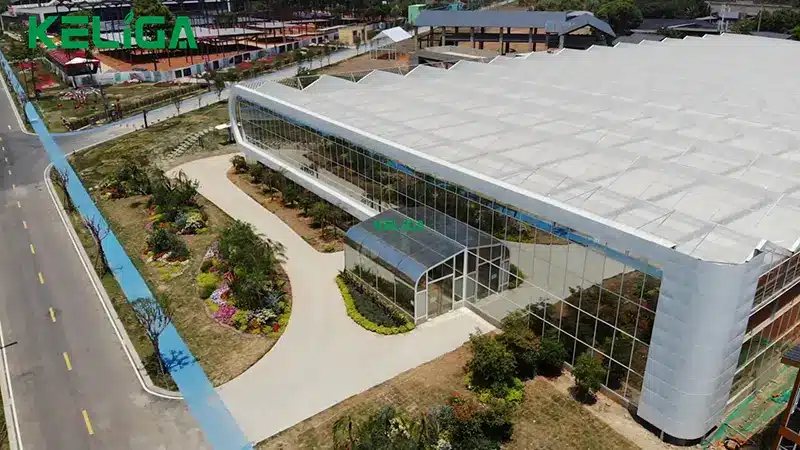

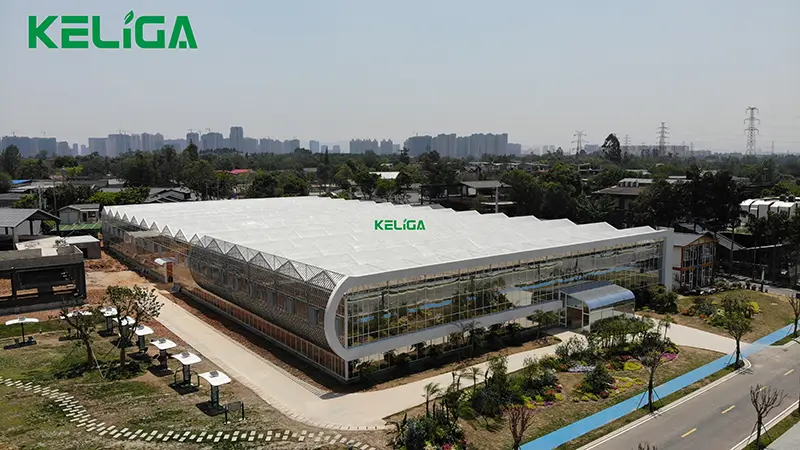

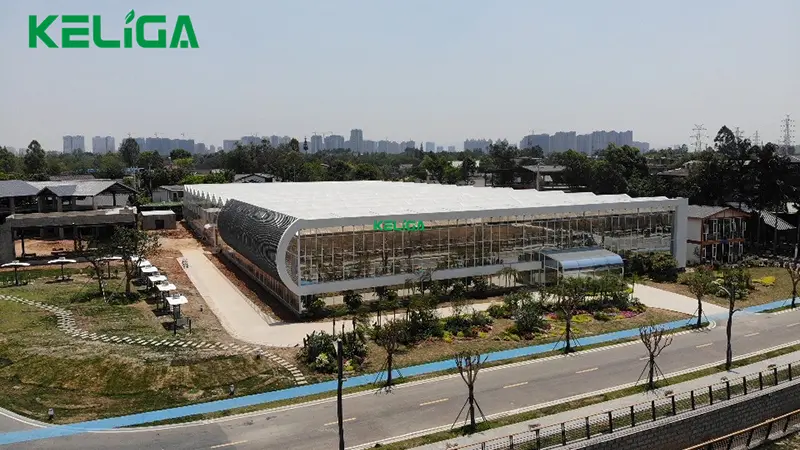

C-Shape Customized Greenhouse – Longquanyi District, Chengdu
Project Overview
Located in Longquanyi District, Chengdu, Sichuan Province, this custom-engineered C-shaped greenhouse spans approximately 100,000 square meters (10 hectares). Designed as a high-end facility for ornamental plant production, it integrates multiple advanced systems to create an optimal growing environment year-round.
The C-shaped layout follows the natural contour of the site, allowing the structure to blend seamlessly with the surrounding landscape while maximizing land utilization efficiency. This large-scale facility serves as a model for modern protected horticulture in Southwest China.
Key Systems & Equipment
The greenhouse is equipped with the following core systems:
| System | Description |
|---|---|
| Cooling System | Fan-and-pad evaporative cooling (wet curtain + exhaust fans) — reduces internal temperature by 5–8°C below ambient; ideal for hot summers |
| Shading System | External and/or internal shade screens (45%–99% shading rate), automatically deployed based on light intensity sensors |
| Automation Control System | IoT-based central controller integrating temperature, humidity, light, CO₂, and irrigation; supports remote monitoring via mobile app |
| Substrate Cultivation System | Soilless growing medium (e.g., coconut coir, perlite, or peat-based mixes) with drip irrigation for precise water and nutrient delivery |
| Ventilation System | Ridge vents and sidewall roll-up curtains for natural airflow when conditions permit |
| Heating System (optional) | Hot water pipe loops or heat pumps for winter temperature maintenance |
| Irrigation & Fertigation | Automated dosing system mixing fertilizers into irrigation water; EC/pH sensors ensure nutrient accuracy |
| Lighting System (supplemental) | LED inter-lighting or HPS lamps for photoperiod control and cloudy-day compensation |
Technical Parameters (Estimated)
| Parameter | Specification |
|---|---|
| Total Area | ~100,000 m² (10 hectares) |
| Shape | Custom C-shaped footprint |
| Covering Material | Glass (double-glazed) or polycarbonate panels |
| Cooling System | Wet curtain + exhaust fans; cooling capacity: ~8–12 air changes/min |
| Shading System | External shade screen (50%–70% shade rate) + internal thermal screen |
| Automation Platform | SCADA / IoT central control with sensor feedback loops |
| Substrate Type | Coconut coir / perlite / rockwool slabs |
| Irrigation Method | Drip or ebb-and-flow with fertigation integration |
| Climate Control Accuracy | Temperature: ±1°C; Humidity: ±5% RH |
| Annual Operational Season | Year-round (365 days) |
Design Advantages of C-Shaped Greenhouse
1. Enhanced Structural Strength and Wind Resistance
The curved C-shaped design distributes external loads (wind, snow, seismic forces) more evenly across the frame than traditional rectangular structures. The smooth, continuous surface reduces wind resistance, making the greenhouse highly suitable for open agricultural zones in Chengdu’s hilly terrain. The arch-like geometry also eliminates flat surfaces where snow or debris could accumulate, lowering maintenance requirements in winter conditions.
2. Optimized Natural Light Penetration
The curved roof captures sunlight from multiple angles throughout the day and across seasons. This improves photosynthetic active radiation (PAR) uniformity inside the growing zone, reducing shaded “dead corners” often found in conventional gable greenhouses. For flower and high-value crop production, consistent light distribution directly translates to better color, uniform growth, and higher marketable yield.
3. Superior Water Runoff and Drainage
The curved surface facilitates natural shedding of rainwater and condensation, preventing water pooling on the roof which could cause structural overloading or light obstruction. This is especially valuable in Chengdu’s humid subtropical climate with significant seasonal rainfall.
4. Space Efficiency and Internal Layout Flexibility
By following the site’s natural contour, the C-shaped design maximizes usable floor area while reducing land preparation and earthwork costs. The absence of internal support columns creates unobstructed space for substrate cultivation rows, automated irrigation booms, and worker movement.
5. Energy Efficiency through Passive Solar Design
The curved envelope minimizes the surface area exposed to harsh afternoon sun compared to flat-roof designs, reducing peak cooling loads. When combined with double-layer covering and thermal screens, this shape helps maintain stable internal temperatures with lower energy input.
6. Aesthetic Integration with Landscape
The C-shaped greenhouse offers a visually appealing, organic appearance that integrates harmoniously with Chengdu’s rolling hills and agricultural park settings. This enhances its value for agritourism and educational demonstration purposes, in addition to pure production functions.
Summary
The C-shaped customized greenhouse in Longquanyi District, Chengdu, represents a state-of-the-art facility combining structural innovation with comprehensive environmental control systems. Its cooling, shading, automation, and substrate cultivation components enable precise, data-driven crop management across its 100,000 m² footprint. The distinctive C-shaped design offers significant technical advantages in load distribution, light transmission, water management, space efficiency, and energy conservation, making it a high-performance solution for large-scale floriculture and specialty crop production in Southwest China.
It generally uses high-quality materials such as aluminum alloy structures and glass or polycarbonate panel, and is personalized according to factors such as the customer’s planting needs, site conditions, and budget.
- It can be customized according to planting needs and environmental conditions, including adjusting parameters such as temperature, humidity, and lighting.
- 2.Reasonable design, robust structure, able to withstand adverse weather conditions, to ensure that the crop growing environment is stable.
- Equipped with advanced automation systems, it can achieve remote monitoring and intelligent control, improving production efficiency.
- Environmental protection and energy saving, using efficient and energy-saving equipment and technology to reduce resource consumption and production costs.
5000sqm C-shape custom greenhouse for vegetable cultivation in the Netherlands
This 5,000 sqm C-shaped customized greenhouse in the Netherlands is 100m long and 50m wide. Designed with high-performance insulation materials, it delivers outstanding thermal retention and minimizes energy loss. The stable interior climate supports efficient year-round vegetable production with low heating demand and consistent growing conditions.
3000sqm Custom C-shape Greenhouse Project in Germany
This 3,000 sqm customized C-shape greenhouse project in Germany measures 75 meters in length and 40 meters in width. It features a high-efficiency natural ventilation system for excellent air circulation. The stable inner environment lowers humidity and disease risk, supporting high-quality crop growth with energy-saving and reliable operation.
8000sqm Custom C-shape Exhibition Greenhouse US
This 8,000 sqm customized C‑shape exhibition greenhouse measures 200m long and 40m wide. It uses high‑transparency glass for excellent light transmission, ensuring even and sufficient lighting. The open interior layout creates ideal conditions for plant displays, with stable light levels supporting healthy growth and attractive exhibition effects year‑round.
R&D Focus Areas
Greenhouse ventilation system
Maintain air circulation, regulate temperature and humidity, and promote crop growth
Automatic irrigation system
Automatically adjust according to the water demand of crops, ensuring the water demand for crop growth.
Light supplement system
Provide appropriate light in the absence of sufficient light, promote photosynthesis, and increase yield.
Light supplement system
Automatically adjust the temperature inside the greenhouse according to the ambient temperature to maintain a stable growth environment.
Growth environment monitoring system
Real time monitoring of temperature, humidity, lighting and other parameters, providing data support to make adjustments.
CO2 concentration regulation system
Regulates the CO2 concentration in the greenhouse, promotes plant photosynthesis, and improves light utilization efficiency.
